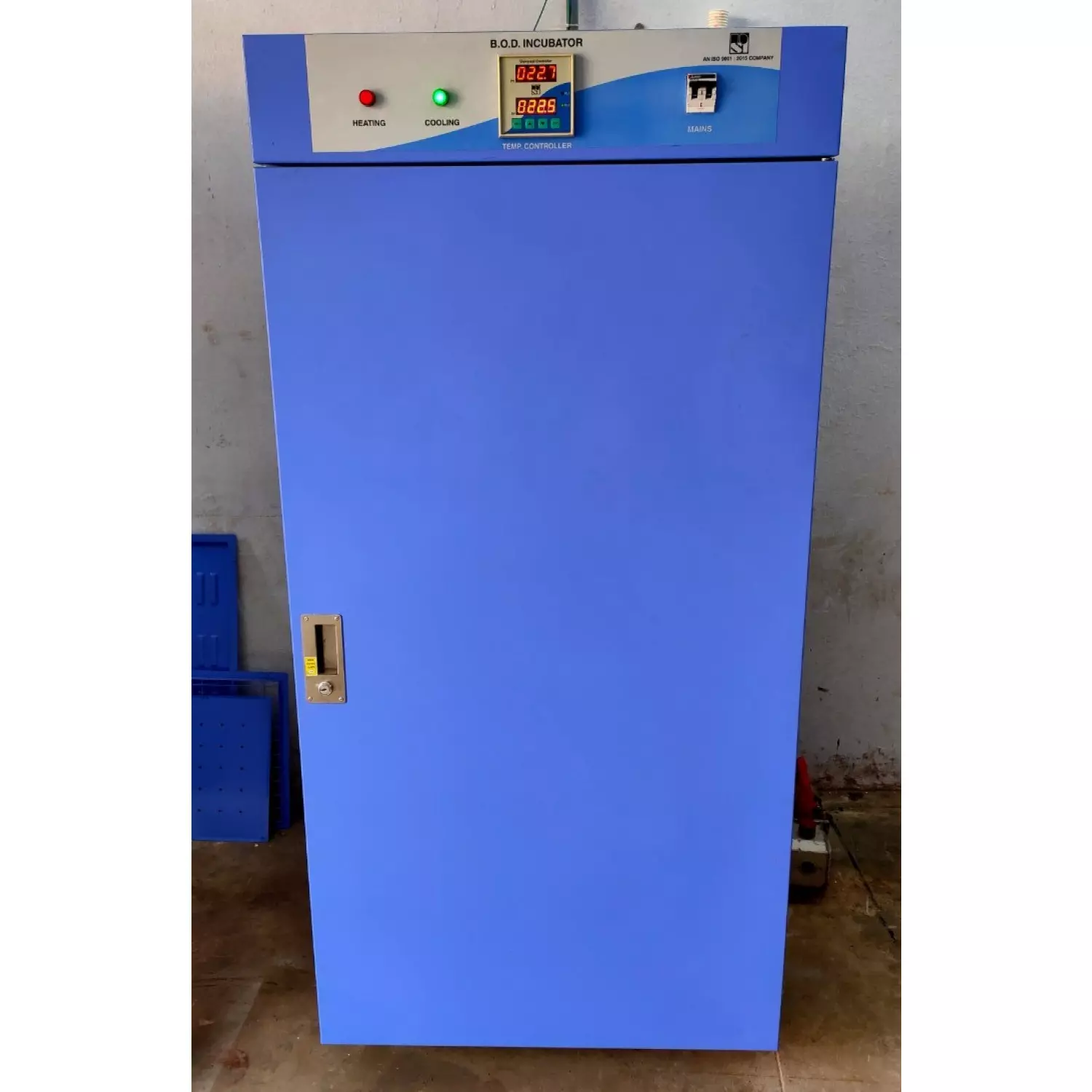

B O D Incubator
B O D Incubator Details
Our extensive range of B.O.D. Incubators has been designed especially for biological Oxygen demand determination & other applications like general incubators, Serum studies & Enzyme assays test. We can also customize the B.O.D. Incubators to suit the varied requirement of the clients with in stipulated time frame.
Specifications
- Temperature Range 5.0 °C to 60.0 °C. Accuracy +/- 0.1 °C. Uniformity +/- 1.0 °C
- Temperature Display: Digital LED 3 ½ digit, Resolution 0.1 deg C
- Heating system: U shaped Nichrome wire heater in SS Sheathing.
- Cooling system: Hermetically sealed CFC free Emerson compressor with R 134a refrigerant.
- Air circulation: Flange Motor with Impeller and blower.
- Interior Illumination for working Area.
Construction
- Double walled, gap between walls filled with PUF Insulation.
- Standard Model: Stainless steel Mirror polished chamber and heavy gauge Powder- coated CRC exterior.

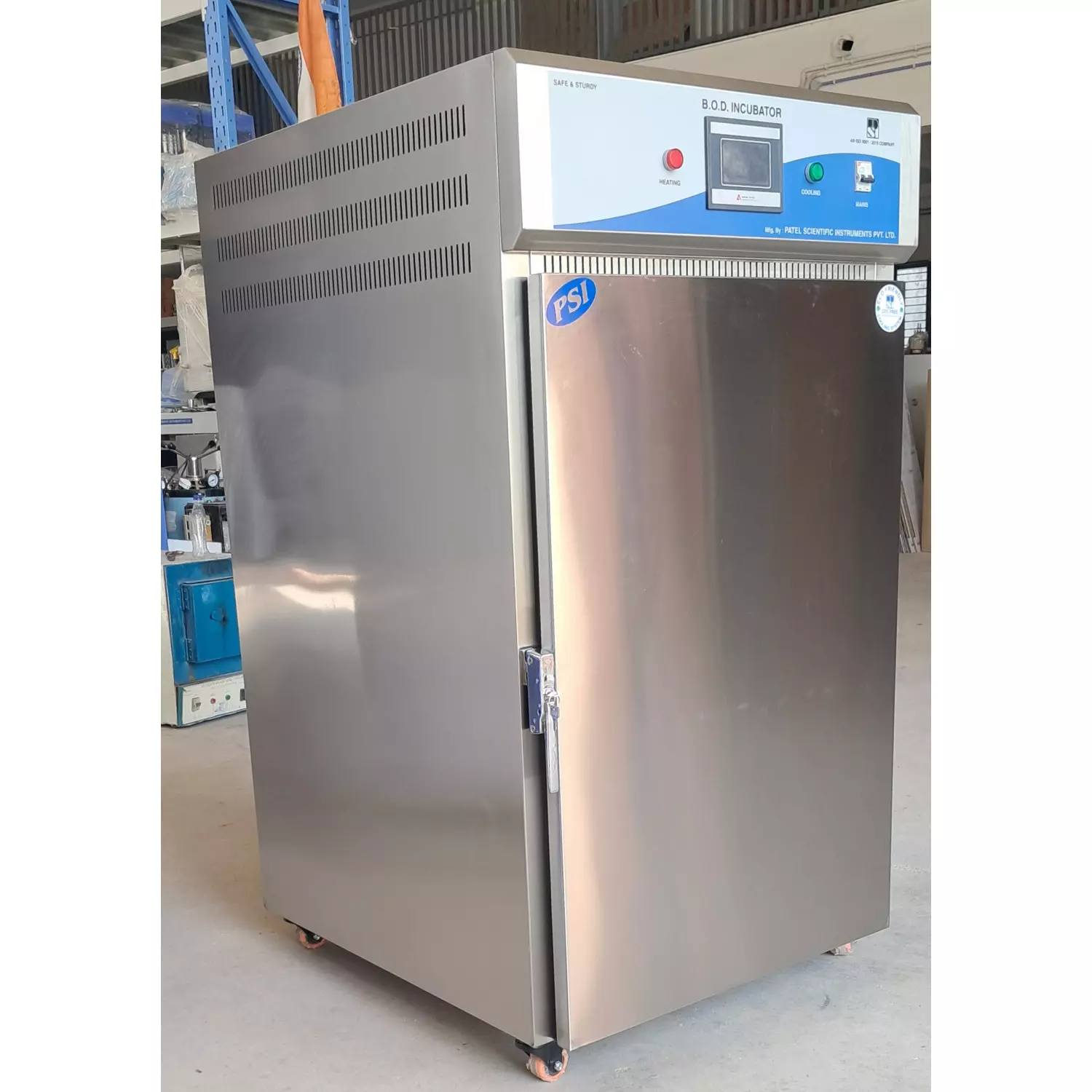

- GMP Model: Stainless steel Mirror polished chamber and exterior of dull finish stainless steel.
- Double door: Inner full Viewing door and outer door insulated with lock and key arrangement.
- 3” Thick CFC Free Puff Insulation.
- Stainless steel Trays. Adjustable Tray Height adjustment.
- Unit Mounted on castor wheels with front lock arrangement.
Control Panel
- Microprocessor based PID temp. Controller with auto tune facility for precise control of temperature.
- Temp. Sensor: RTD Class A type High Accuracy.
Safety Features
- Over heat temperature with cut-off.
- Electrical overload compressor cut-off.
- Time delay for compressor switch on.
- Electrical short circuit breaker.
Utilities
- Room temperature around machine preferably at 25 degree C.
- Stabilized input voltage of 230V Ac, 50 Hz, and 15 Amps.
- Water drains line with ½” Nozzle to be provided at floor level.
Model No. | Inner dimension (W x D x H) MM | Capacity (Liters) | No. of Trays |
PSI-BOD100L | 450 x 450 x 500 | 100 | 2 |
PSI- BOD175L | 500 x 500 x 700 | 175 | 2 |
PSI- BOD220L | 600 x 600 x 600 | 220 | 3 |
PSI- BOD285L | 600 x 600 x 750 | 285 | 3 |
PSI- BOD340L | 600 x 600 x 900 | 340 | 3 |
PSI- BOD450L | 600 x 600 x 1200 | 450 | 4 |
PSI- BOD600L | 700 x 700 x 1200 | 600 | 4 |
PSI- BOD800L | 700 x 750 x 1500 | 800 | 4 |
PSI- BOD1000L | 800 x 800 x 1500 | 1000 | 5 |
Optional:
Microprocessor Auto Tune PID Controller with Data Login System with Software.
Microprocessor touch screen HMI colour display with PLC for data logging
Data Record:
- 21 CFR Part 11 Compliance Secured audit trail
- Multilevel Passwords
- Print Interval Programmable Between 1 to 240 minutes
- Multi Chamber data acquisition on Single Software.
- Data Generated on PDF Report
- Auto logout, account Blocking and reactivating facility.
- Log data, event and audit trail data recording
- Tabular and graphical report, audit trail report
Documentations Provided
- IQ OQ PQ
- Calibration Certificate
- User Manual of Instrument
