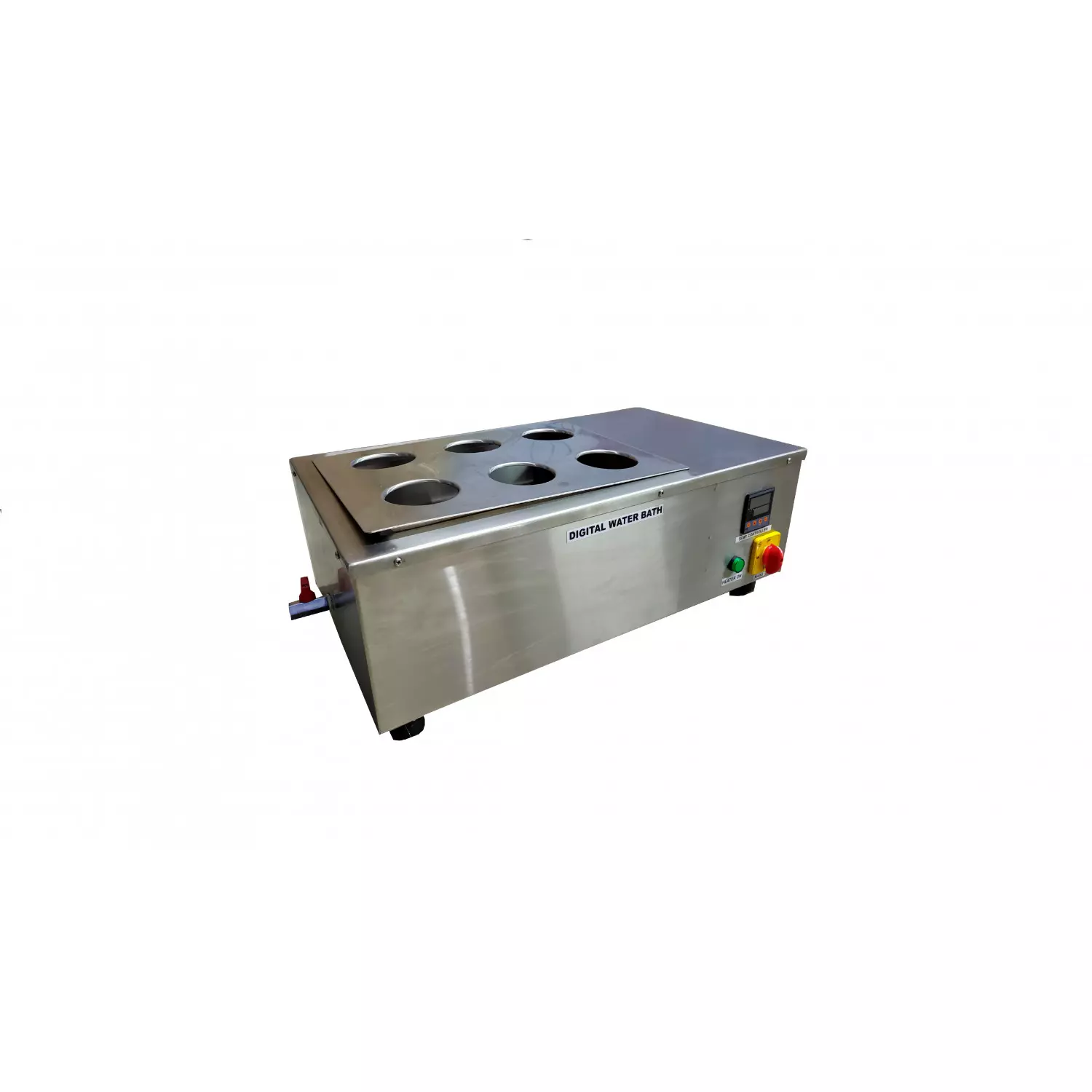

This range of rectangular water bath systems manufactured by “PSI” is suitable for general boiling applications in laboratories. These systems offer loads of features that facilitate easy operation and comfortable working in any laboratory; stainless steel inner chamber is easy to clean and drain plug is fitted for quick water drainage. If your application needs stirring, a high speed stirrer can be fitted on request.
The standard models of our rectangular water bath units come with 6 and 12 holes (75 mm Diameter); however, if you require a unit with 9 holes, we can also construct with matched specifications you may require for specific applications. These high quality rectangular water baths are manufactured with single and double walled construction, special grade mineral wool is used as insulation, which minimizes heat loss. A number of optional accessories can be fitted enabling you to take optimum advantage of these water baths, which may include PID controller, auto cut off device, digital indicator and buzzer alarm etc.
We would appreciate your inquiries for our rectangular water bath systems, please email us for brochure, price list or quotation, we will be glad to respond you promptly upon receipt of your message.
Features:
Specifications:
Construction | Double Walled | |
Capacity | 10 Liters | 15 Liters |
Chamber Dimensions | 350 x 250 x 100 mm | 405 x 305 x 100 mm |
No. of holes | 6 | 12 |
Holes Dia. | 75 mm | |
Temperature range | 5°C above ambient to 100°C | |
Temperature Sensor | PT-100 | |
Heater | 1000/1500 Watts | |
Temperature Accuracy | ±0.5°C | |
Material of Construction | § Inner chamber and lid - Stainless Steel (SS-304 grade) § Outer chamber - Stainless Steel (SS-304 grade) § Special grade mineral wool | |
Heating | Immersion heaters (ISI Brand) | |
Control panel | § On/off switch § Heating and mains indicators § Micro Processor Digital PID Controller | |
Power | § 220 V / 50 Hz |
Model No. | Size | Capacity |
PSI-WB06 | 350 x 250 x 100 mm | 6 Hole |
PSI-WB12 | 405 x 305 x 100 mm | 12 Hole |
