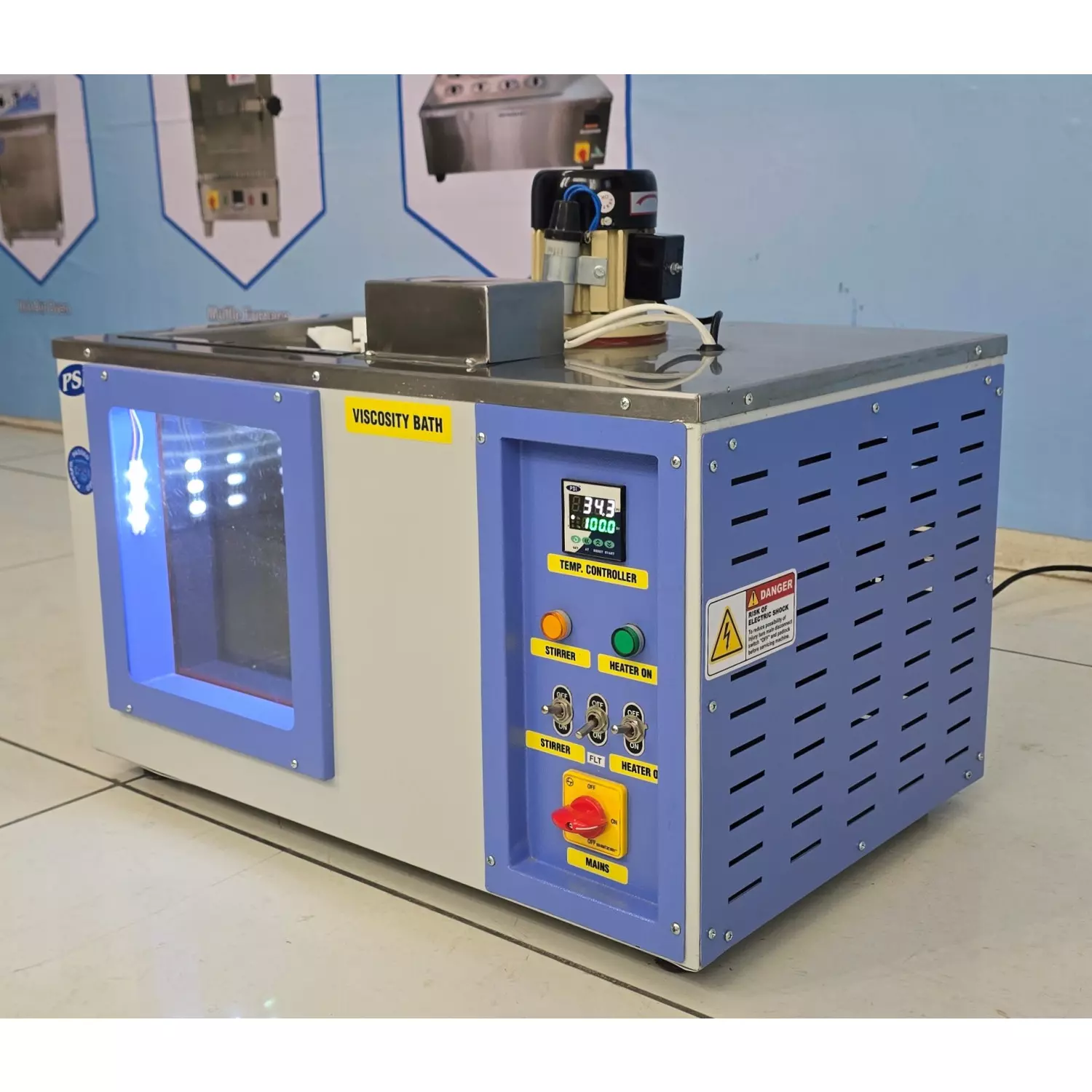

Kinematic viscosity is a critical factor of oils, which measures their flow of resistance. Kinematic Viscosity Bath is the equipment, which is utilized to measure kinematic viscosity of different types of oils such as crude oil, lubricating fluid, diesel fuel and peanut oil etc. Viscosity baths manufactured by Patel Scientific Instruments Pvt Ltd are successfully working in different parts of industries including automobile and food industries and pharmaceutical laboratories etc.
Our viscosity bath units offer constant temperature all over the range above and below ambient available with and without refrigeration facilities. We offer our 4 standard models, 5°C above ambient to 150°C temperature range.
The range of viscosity baths is ruggedly designed. Like our other equipment, these units also feature stainless steel construction from inner side, while outer cabinet is made from powder coated mild steel with 2 side sealed glass windows. A provision of illumination is given, fluorescent lamp is optional and fitted if requested.
Features:
Meet ASTM D445 & IP-71 standards | Available with and without refrigeration |
over temperature & low bath level protection | Can accommodate 4 viscometers |
High grade stainless steel inner chamber | Digital temperature controller |
Specifications:
Inner Size | 12 x 6 x 12 Inch | 12 x 9 x 12 Inch |
Size | 2 Viscometers | 4 Viscometers |
Temperature Range | 5°C above ambient to 150°C | |
Temperature sensor | PT-100 | |
Temp. Controller | PID Temp Controller w/ Accuracy ±0.5°C | |
Construction | - Inner chamber: SS 304 | |
Heating System | Heating by tubular Heater vertically fitted inside chamber (2.0 K.W) | |
Stirring | Stirring by S.S. shaft fitted with Motor | |
Power | 230 Volts 50 Hz | |
Accessories | Viscosity holder, universal type |
Model No. | Size |
PSI-KVB2 | 2 Viscometer |
PSI-KVB4 | 4 Viscometer |
PSI-KVB6 | 6 Viscometer |
