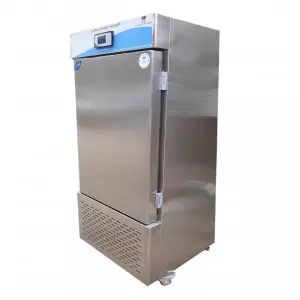

Ultra Low Deep Freezer

AvailabilityIn Stock
CategoryDeep Freezer
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Ultra Low Deep Freezer Details

Product Details:

Brand

“PSI”

Insulation

High Density Polyurethane Insulation (PUF)

Power Source

230V,50Hz Single Phase

Door Type

Single Door

Temperature Range

-80 Degree C (can be varied from -40 Degree C to -86 Degree C)

Temperature Controller

Microprocessor based Controller with RTD Sensor(PT-100)

Display Resolution

0.1 Degree C

Control Accuracy

+/-3 Degree C

Refrigeration System Compressor

Hermetically Sealed Compressor(Cascade system for DF80)

Refrigeration System Condenser

Fin & Tube type Air-Cooled Condenser

Cabinet Exterior Material

CRCA with Powder Coated

Cabinet Interior Material

Duly polished 304 grade Stainless Steel

Features:

  • Using reliable components to ensure quality.
  • Micro-controller based controlling and monitoring.
  • Intelligent time delay for dual stage controlling.
  • Door mounted control panel on eye-level location in upright model.
  • Dual display for reading actual and set temperature simultaneously, lower display indicates functions and errors.
  • Set point security system with key operated switch.
  • Do it yourself Washable Filter for Protection of condenser fins.
  • Reliable hot gas heated door frame prevents ice build-up in door opening.
  • Multiple inner door ensure minimum loss during door opening
  • Adjustable trays, trays can be placed as per your needs in upright model
  • Efficient designed cascade system by hermetically sealed compressor
  • Aerodynamically designed condenser provides efficient cooling system.
  • Safety functions for refrigeration system are provided.
  • Heavy - duty castor wheels for easy mobility with locks.


Applications:

  • For storing plasma, serology material, serum and post-mortem necropsy samples.
  • For testing specimens, dissected tissues, microorganisms, plant molecular samples, research materials, deep sea biological samples, bacterial/other clones and plastic samples for low-temperature impact testing.
  • Industrial applications on epoxy materials, polymeric products, QC studies, production materials, Pharmaceuticals Product Testing.



Other Details:

  • Deep Freezer -80 is specially designed for Blood Banks, Research Institutes, and Biotechnology Firms for storage of multiple components of the plasma within the prescribed temperatures(-80).
  • This is ensured using the unique expansion valve technology developed by our experts.

Model No.

Size in Inches

Capacity

PSI-ULD100L

18” x 18” x 20”

100 Ltr

PSI-ULD200L

20” x 20” x 32”

200 Ltr

PSI-ULD400L

24” x 24” x 44”

400 Ltr

  • Note:
  • Strongly Recommended must use servo voltage stabilizer 2KW
  • Instrument must be use below ambient temp. 27°C

Documentations Provided

  • IQ OQ PQ
  • Calibration Certificate
  • User Manual of Instrument
